Aerohub
Aerohub is a one-stop shop for all your IFE needs. With the latest generation components, Aerohub is the most advanced portable wireless inflight entertainment device that provides unmatched performances and reliability for wireless entertainment.
Inexpensive, lightweight and small-sized
Expandable storage up to 2TB SSD
Dual battery to support for 15+ Hours
Scalable SW and Cloud platform support the Ancillary revenue strategy
Single WMS unit can stream IFE content to 75+ PEDs
Auto on/ off at 10000 ft. and Crew App for PA Pause, Battery Status
Enables Data Driven Decisions & Strategy through IFE Reports & Analytics
IFE Content streaming on both Mobile App & Browser
DRM approved
Aerohub Key Features
AeroHub portable wireless server is DO-160G certified and minimises operational costs through its innovative swappable battery configuration & remote loading of content
Inexpensive, lightweight and
small-sized
Expandable storage up to 2TB SSD
Dual battery to support for 15+ Hours
Scalable SW And Cloud Platform To Support The Ancillary Revenue Strategy
Single WMS Unit Can Stream IFE Content To 75+ PEDs
Auto On/ Off At 10000 Ft. And Crew App For PA Pause, Battery Status
Enables Data Driven Decisions & Strategy Through IFE Reports & Analytics
IFE Content Streaming On Both Mobile App & Browser
DRM Approved
Benefits
Compact
Lightweight and small-sized; making it the most advanced portable IFE solution
Affordable
Lowest total cost of ownership making it the most affordable wireless media server in the market today
Effortless Management
Easy to deploy, operate & maintain to ensure minimum impact on cabin crew activities & aircraft operations
Ancillary Revenues
Generates increased onboard ancillary revenues through features like advertising and offline web stores
User Friendly
No preflight mobile app required; passengers can use their own mobile devices (BYOD) for accessing the IFE
Unlimited Entertainment
Capable of streaming HD quality
on-demand video & audios, games, digital magazines and much more
on-demand video & audios, games, digital magazines and much more

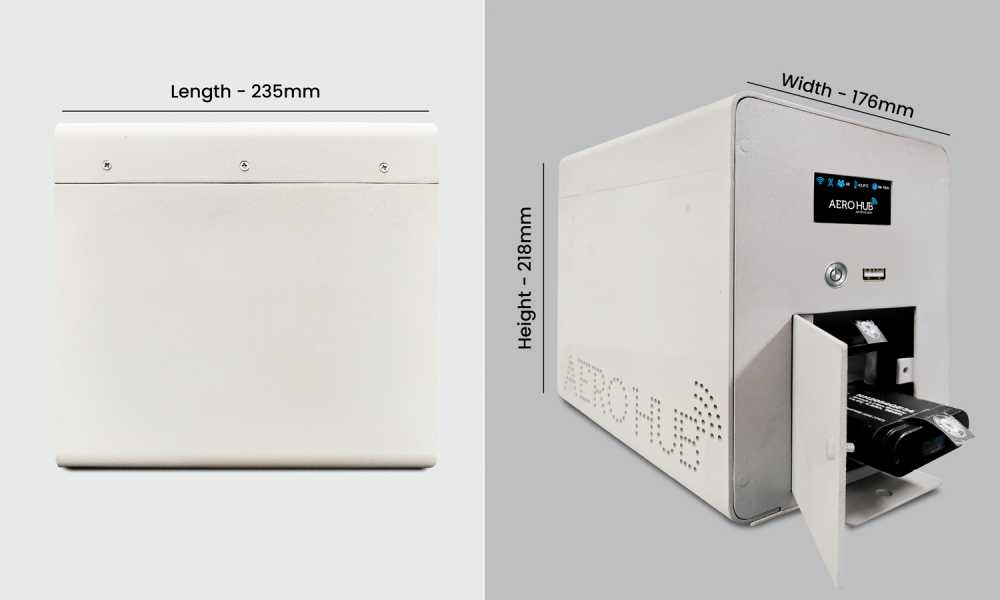

Technical Specifications (AEROHUB)
- Dimensions - L X W X H: 11.12 X 5.23 X 9.61 (Inches)
- Weight - 3.61 Kgs
- Battery - 2 Li-Ion 97WH battery up to 15 hours
- Security - TPM 2.0
- Mass Storage - Up to 2TB removable SSD
- Processor- Dual Core; 1.6 GHz; 2-GB RAM; up to 16GB eMMC flash
- Maintenance Ports- 1G Ethernet & USB 3.0 interface
- Access Point- WiFi: 802.11 a/b/g/n/ac/ac-W2
- Sensors - Temperature, Pressure, Accelerometer, Gyro
- LCD Display and Control buttons - 4 Buttons
(PA Pause, Display on, LTE off, Power on/off)

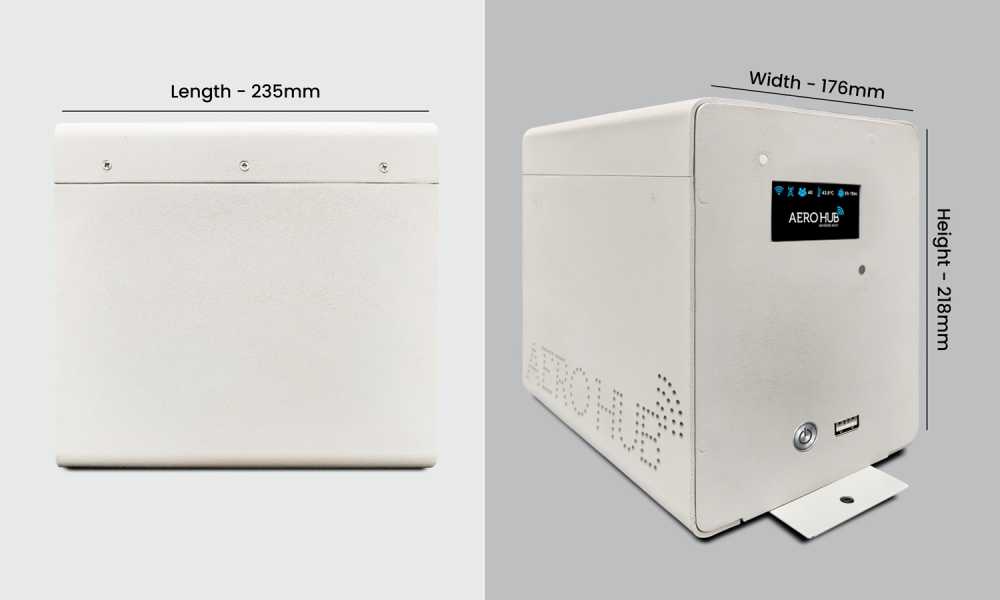

Technical Specifications (AEROHUB PRO)
- Dimensions - L X W X H: 9.25 X 8.58 X 7 (Inches)
- Storage - 1 Tb
- Memory - 16 Gb
- Weight - 4.5 Kgs
- Certification - RTCA DO-160 Cat. M
- Capacity- Up to 100 concurrent users (per unit)
- Communication Protocol- IEEE 802. 11 b/g/n/ac
- Frequency band- Dual band 2.4 GHz & 5 GHz
- Number of Antennas - 4
- Max. bandwidth - 1300 Mbps
- Range - 30 m
- CPU- Intel i5-6400 2.7 GHz Quad-Core
- Power- 28 VDC or 115 VAC from aircraft
Technical Specifications (AEROHUB PRO)
- Dimensions - L X W X H: 9.25 X 8.58 X 7 (Inches)
- Storage - 1 Tb
- Memory - 16 Gb
- Weight - 4.5 Kgs
- Certification - RTCA DO-160 Cat. M
- Capacity- Up to 100 concurrent users (per unit)
- Communication Protocol- IEEE 802. 11 b/g/n/ac
- Frequency band- Dual band 2,4 GHz & 5 GHz
- N0Antennas - 4
- Max. bandwidth - 1300 Mbps
- Range - 30 m
- CPU- Intel i5-6400 2,7 GHz Quad-Core
- Power- 28 VDC or 115 VAC from aircraft
